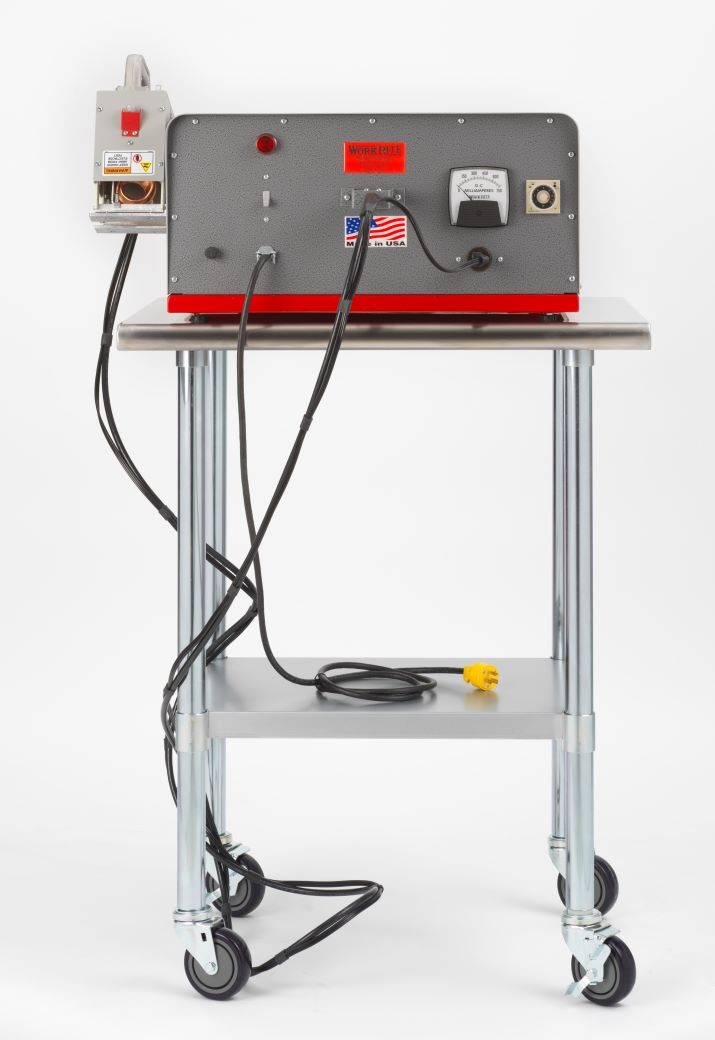

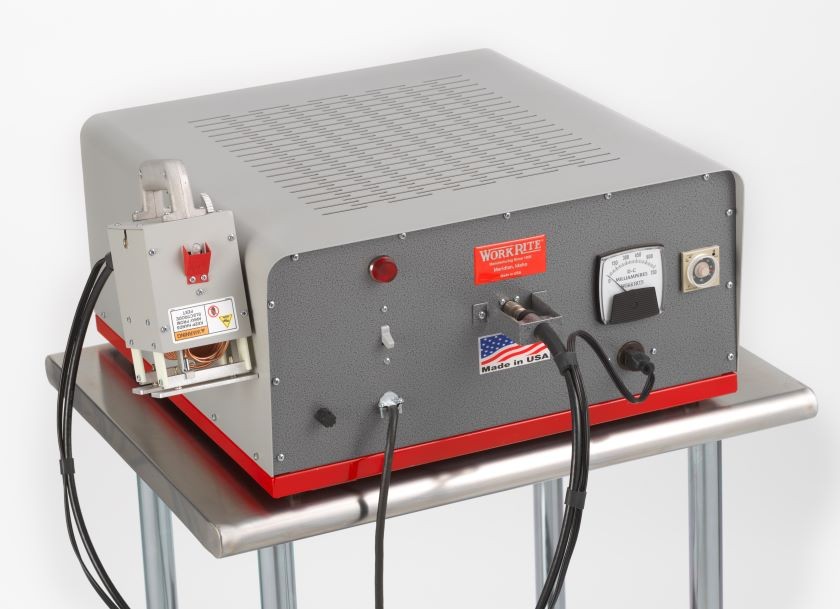

  • New: Model 5000

We are introducing the first new Tube-based RF machine in over 15 years, with many improvements.

  • New-Improved Vacuum Tube for longer life and lower heat signature.
  • Modern electrical architecture operating on single-phase115 VAC 18 Amps.
  • 24” x 24” Chassis, allowing for easy access to all components for cleaning and maintenance on a single level, compared to 3000/4000 2-level layout.
  • Traditional Handgun design with new “U-shaped handle comfort grip, 13 foot length cord/coax cable.
  • New safety switch system cuts all power to unit when chassis cover is removed.
  • Penetrates approx 2” of wood for glue setting.
  • 27.12 RF Frequency.
  • 1-Year Factory Warranty on Machine components, including power tubes w/machine purchase..
  • MADE IN USA.
  • Contact Factory for pricing
  • Model 3000 And Model 4000 Refurbishment Program

We refurbish, service and supply parts for all WorkRite Model 3000 and 4000 wood welders, ensuring they leave our plant ready for many more years of trouble-free operation. Many of our 3000 and 4000 machines have been in use from the late 1960s and require little in parts or maintenance to continue reliable operation due to the basic simplicity of design and quality of components.



Many repairs can be done with phone advice and repair parts, with machines rarely returned to the plant for repairs.



Although WorkRite has discontinued production of the Model 3000/4000 wood welders, we usually have factory re-conditioned 3000/4000 units with a 1-year warranty available on an ongoing basis for customers who need a budget-friendly product. Contact factory for machine availability and pricing.

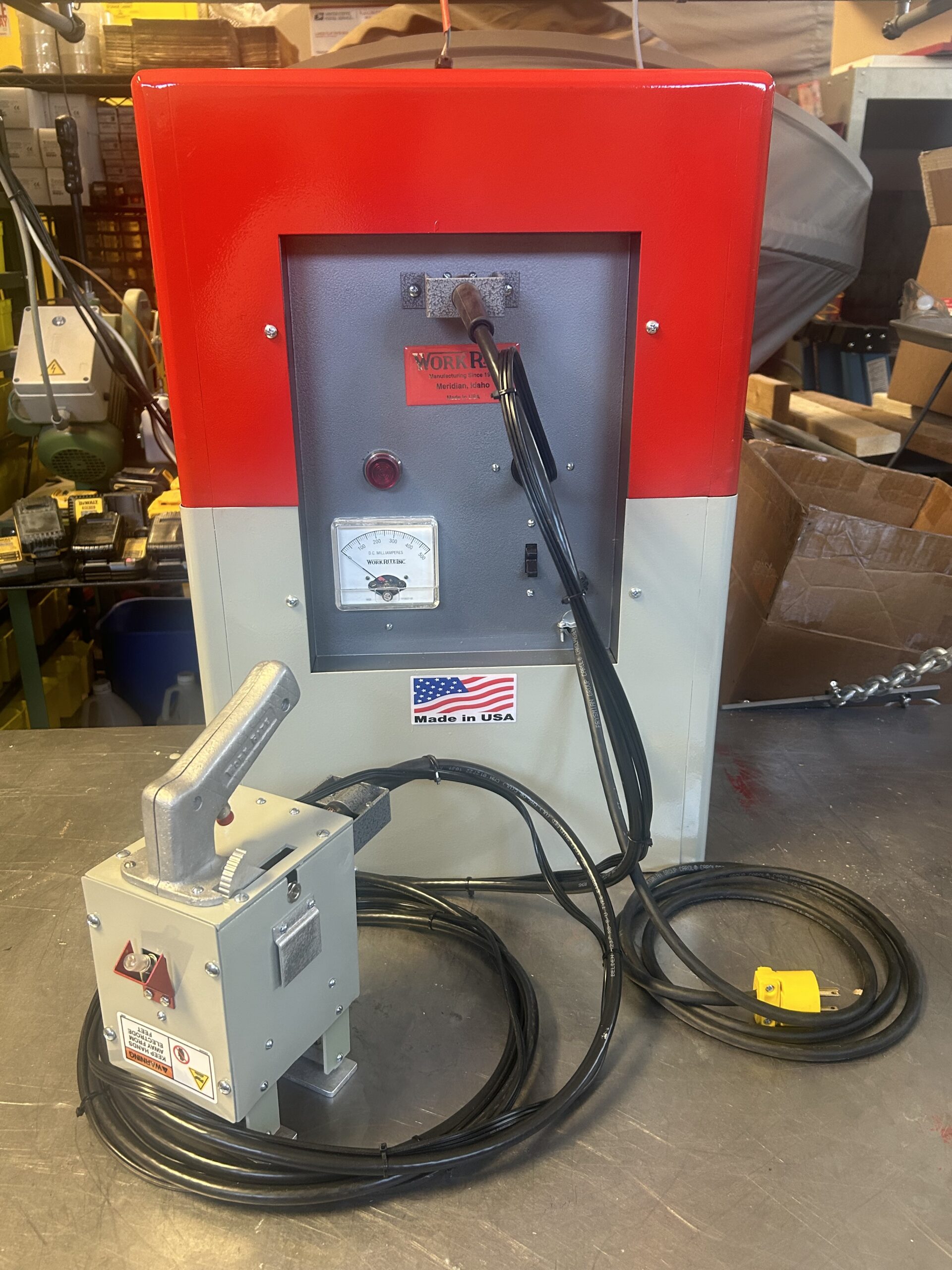

Model 3000
Model 4000 Chassis
Model 4000

Restoration and Refurbishment Process:

  • Unit and handgun are completely disassembled and cleaned for inspection.
  • Any worn/poorly functioning part is repaired or replaced with genuine WorkRite parts.
  • Exterior cabinet and handgun housings are repaired and  professionally refinished.
  • Unit is reassembled and bench-tested to ensure proper operation and performance.
  • Any part that fails during bench-testing is replaced, and the unit is retested.
  • A new certification label with the date of rebuild is affixed and the machine is crated for delivery back to the customer.

All refurbished units come with a 1-year Factory warranty  excluding the primary transformer and tubes (90-day tube warranty).

Prices:

  • Complete restoration and refurbishment of customer unit and matching handgun including parts – $2,200.00 plus shipping.
  • Complete restoration of customer unit without handgun, including parts – $1800.00 plus shipping.
  • Complete restoration of customer hand unit including parts – $400.00 plus shipping.
  • Partial repairs are done on an hourly basis at $75.00 shop rate.
  • 90-day  warranty applies to all repairs.
  • Prices subject to change due to Tariffs,

Basic Set-up of Workrite Wood Welders

  • RECEIVING YOUR WORKRITE WOOD WELDER

After removal from the box/s, check components for any shipping damage (contact factory immediately if damage noted).

MODEL 5000 — Generator Chassis, Hand Unit, and 2 Power tubes.

  1. Remove chassis cover, install power tubes, connect braided cables per the enclosed diagram sheet.
  2. Remove 4 black lifting lugs from inside of chassis cover (discard) and replace cover.
  3. Install Handgun Coax/Electrical cables to the corresponding sockets on the front panel.
  4. Plug 110V power cord into electrical, making sure that no extension cords are used, as they will reduce incoming voltage to machine.
  5. Watch the instructional video and read the instruction sheets before proceeding to operation.

MODEL 3000/4000 — Generator Chassis, Hand Unit, and 2-Power tubes (3000), 4-Power tubes (4000).

  1. Remove back panel, unpack and install power tubes, connect braided cables per the diagram on inside of back panel.
  2. Install Handgun Coax/Electrical cables to the corresponding sockets on front panel.
  3. Plug 110V power cord into electrical, making sure that no extension cords are used, as they will reduce incoming voltage to machine.
  4. Watch the instructional video and read the instruction manual before proceeding to operation.
