Benefits of WorkRite Wood Welders
- Greatly reduces clamping time, sets glue in seconds
- Eliminates unsightly nails or staples on wood surfaces
- Can be used with any water-based wood glue
- Uses Single-Phase 110-Volt power source
- MADE IN USA
WorkRite Inc
Trusted Manufacturing Excellence Since 1908
WorkRite Inc. is a leading manufacturer of high-frequency wood welding machines, serving woodworking and furniture industries worldwide.
With over a century of engineering expertise, our machines are designed to deliver unmatched accuracy, durability, and production efficiency.

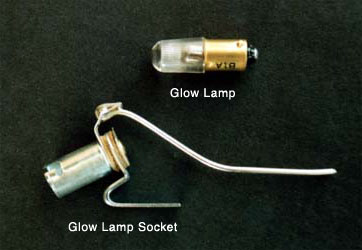

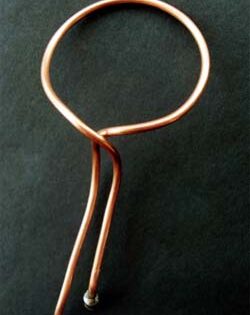

Replacement Parts & Accessories
GENERAL SPECIFICATIONS
Model 4000 Welder
13 Foot Coaxial Cable

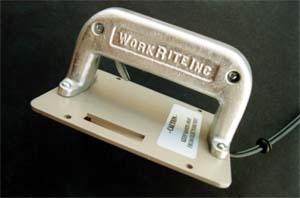

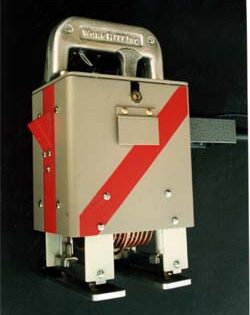

Standard Hand Unit
Maximum Voltage 115 Vac
Maximum Current 18 Amps
Frequency 27.12 M.c.
Radio Frequency
Certificate Attached
WorkRite designed the Model 4000 Electronic Welder to do the heavy duty production work in the large factories, where speed and continuous use is a major factor.

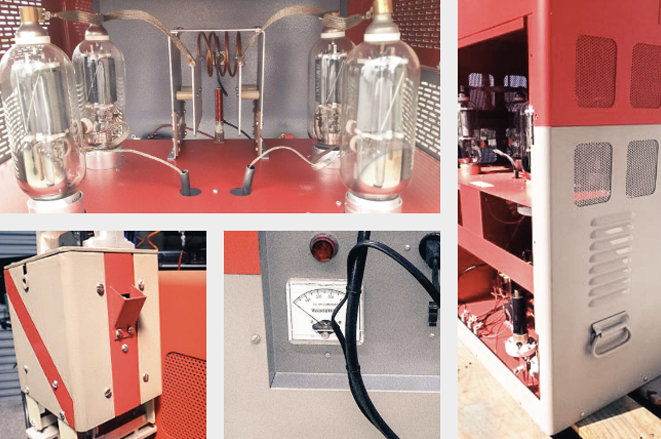

Heavy duty electronic tubes power this large model and deliver a large amount of high frequency current to the glue line.
All component parts in the Model 4000 are of rugged design and will give long and very satisfactory service. Most powerful welder for its price on the market.
120 DAY WARRANTY.
Do's And Don'ts For The Wood Welder Do Not:
DO NOT:
- Do not touch hand unit electrode feet to metal. Will cause arcing.
- Do not allow electrode feet to touch metal workbench. Will ground energy, and cause arcing.
- Do not touch hand unit electrode feet with your hands when operating unit. Arcing may burn your finger up to 2 inches away.
- Do not drop hand unit or generator unit. This will cause a tuning problem.
- Do not make any coil adjustments inside the generator unit.
- Do not allow arcing in hand unit or on glue line. Arcing will overheat tubes.
- Do not continue to operate unit with low or too high (pegging) milli-amp reading.
DO:
- Do use thumb adjuster on hand unit to receive highest milli-amp reading and corresponding heat.
- Do keep hand unit in tune and tighten all screws periodically.
- Do use pre-catalyzed glues for fastest results.
